MicroCal Screen Split Issue Explained

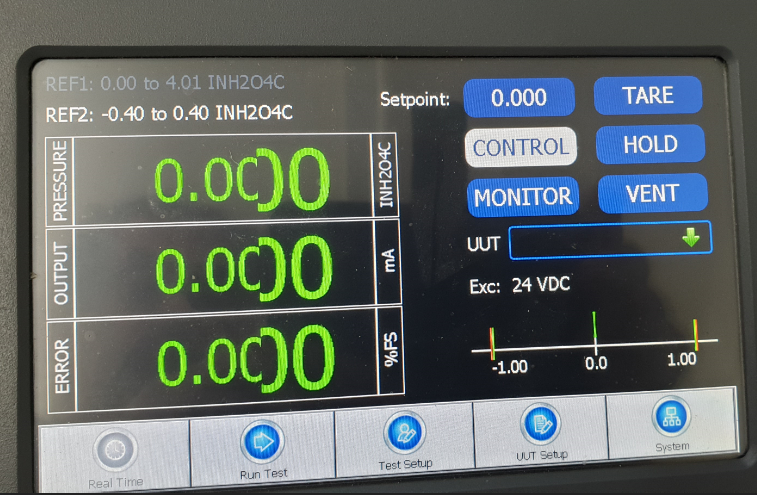

If your MicroCal screen looks like this:

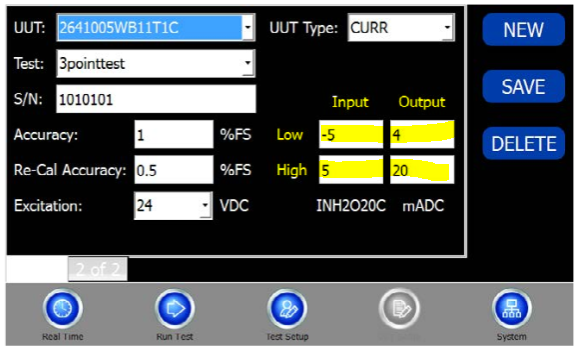

Verify the UUT Setup Screen (see highlighted area below) that the high and low inputs and outputs have been entered correctly.

If they were entered incorrectly, the screen can exhibit the above phenomenon.
